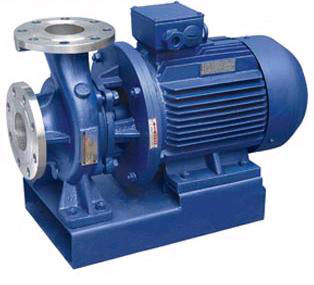

ISWH臥式不銹鋼管道離心泵
ISWH臥式單級單吸化工離心泵，是在ISW基礎上派聲生出適用耐腐蝕性化工泵。該系列泵性能優、可靠性高、壽命長、結構合理、 外形美觀，具有行業領先水平。
全國咨詢熱線：
0577-67983721
- 產品詳細
一、ISWH臥式不銹鋼管道離心泵產品概述：
ISWH臥式單級單吸化工離心泵，是在ISW基礎上派聲生出適用耐腐蝕性化工泵。該系列臥式離心泵性能優、可靠性高、壽命長、結構合理、 外形美觀，具有行業領先水平。
二、 ISWH臥式不銹鋼管道離心泵產品用途：
ISWH臥式不銹鋼管道離心泵，供輸送不含固體顆粒，具有腐蝕性，粘度類似于水的液體，適用于石油、化工、冶金、電力、造紙、食品制藥和合成纖維等部門，使用溫度為-20℃～+105℃。
三、ISWH臥式不銹鋼管道離心泵產品工作條件：
1、吸入壓力≤1．6MPa，或泵系統高工作壓力 ≤1．6MPa，即泵吸入口壓力+泵揚程≤1．6MPa、泵靜壓試驗壓力為2．5MPa，訂貨時請注明系統工作壓力。泵系統工作壓力大于1．6MPa時應 在訂貨時另行提出，以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。
2、環境溫度<40℃，相對濕度<95％。
3、所輸送介質中固體顆粒體積含量不超過單位體積的0．1％，粒度<0．2mm。
注：如使用介質為帶有細小顆粒，請?jiān)谟嗀洉r(shí)注明，以便廠家采用耐磨式機械密封。
四、ISWH臥式不銹鋼管道離心泵產品產品特點：
運行平穩：泵軸的絕對同心度及葉輪優異的動靜平衡，保證平穩運行，絕無振動。
滴水不漏：不同材質的硬質合金密封，保證了不同介質輸送均無泄漏。
噪音低：兩個低噪音軸承支撐下的水泵，運轉平穩，除電機微弱聲響，基本無噪音。
故障率低：結構簡單合理，關鍵部分采用國際一流品質；配套，整機無故障工作時間大大提高。
維修方便：更換密封、軸承，簡易方便。
占地更?。撼隹诳上蜃?、向右、向上三個方向，便于管道布置安裝，節省空間。

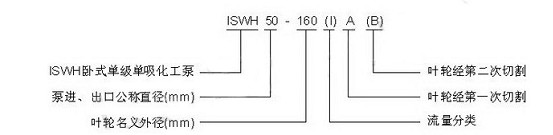

五、ISWH臥式不銹鋼管道離心泵型號意義：
六、ISWH臥式不銹鋼管道離心泵的性能參數：
高轉速：
|
型號 |
流量 |
揚程 |
電機功率 |
轉速 |
效率 |
汽蝕余量 |
|
15-80 |
1.5 |
8 |
0.18 |
2900 |
34 |
2.3 |
|
20-110 |
2.5 |
15 |
0.37 |
2900 |
34 |
2.3 |
|
20-160 |
2.5 |
32 |
1.1 |
2900 |
25 |
2.3 |
|
25-110 |
4 |
15 |
0.55 |
2900 |
42 |
2.3 |
|
25-125 |
4 |
20 |
0.75 |
2900 |
36 |
2.3 |
|
25-125A |
3.6 |
16 |
0.55 |
2900 |
35 |
2.3 |
|
25-160 |
4 |
32 |
1.5 |
2900 |
32 |
2.3 |
|
25-160A |
3.7 |
28 |
1.1 |
2900 |
31 |
2.3 |
|
32-100 |
4.5 |
12.5 |
0.55 |
2900 |
56 |
2.3 |
|
32-100(I) |
6.3 |
12.5 |
1.1 |
2900 |
54 |
2.0 |
|
32-125 |
4.5 |
20 |
0.75 |
2900 |
45 |
2.3 |
|
32-125(I) |
6.3 |
20 |
1.1 |
2900 |
43 |
2.3 |
|
32-125A |
4.0 |
16 |
0.55 |
2900 |
43 |
2.3 |
|
32-160 |
4.5 |
32 |
1.1 |
2900 |
44 |
2.3 |
|
32-160A |
4.5 |
25 |
1.1 |
2900 |
42 |
2.3 |
|
32-160(I) |
6.3 |
32 |
2.2 |
2900 |
42 |
2.3 |
|
32-200 |
4.5 |
50 |
3 |
2900 |
45 |
2.3 |
|
32-200A |
4 |
40 |
2.2 |
2900 |
40 |
2.3 |
|
32-200(I) |
6.3 |
50 |
4 |
2900 |
33 |
2.0 |
|
40-100 |
6.3 |
12.5 |
0.55 |
2900 |
54 |
2.3 |
|
40-100A |
5.6 |
10 |
0.37 |
2900 |
52 |
2.3 |
|
40-125 |
6.3 |
20 |
1.1 |
2900 |
46 |
2.3 |
|
40-125A |
5.6 |
16 |
0.75 |
2900 |
45 |
2.3 |
|
40-160 |
6.3 |
32 |
2.2 |
2900 |
40 |
2.3 |
|
40-160A |
5.9 |
28 |
1.5 |
2900 |
39 |
2.3 |
|
40-160B |
5.2 |
24 |
1.1 |
2900 |
38 |
2.3 |
|
40-200 |
6.3 |
50 |
4 |
2900 |
33 |
2.3 |
|
40-200A |
5.9 |
44 |
3 |
2900 |
31 |
2.3 |
|
40-200B |
5.5 |
38 |
2.2 |
2900 |
29 |
2.3 |
|
40-250 |
6.3 |
80 |
7.5 |
2900 |
28 |
2.3 |
|
40-250A |
5.9 |
70 |
5.5 |
2900 |
28 |
2.3 |
|
40-250B |
5.5 |
60 |
4 |
2900 |
27 |
2.3 |
|
40-100(I) |
12.5 |
12.5 |
1.1 |
2900 |
62 |
2.3 |
|
40-125(I) |
12.5 |
20 |
1.5 |
2900 |
60 |
2.3 |
|
40-125(I)A |
11.2 |
17.2 |
1.1 |
2900 |
58 |
2.3 |
|
40-160(I) |
12.5 |
32 |
3 |
2900 |
52 |
2.3 |
|
40-160(I)A |
11.7 |
28 |
2.2 |
2900 |
51 |
2.3 |
|
40-160(I)B |
10.5 |
22.5 |
1.5 |
2900 |
50 |
2.3 |
|
40-200(I) |
12.5 |
50 |
5.5 |
2900 |
46 |
2.3 |
|
40-200(I)A |
11.7 |
40 |
4 |
2900 |
45 |
2.3 |
|
40-200(I)B |
10.5 |
35 |
3 |
2900 |
44 |
2.3 |
|
40-250(I) |
12.5 |
80 |
11 |
2900 |
38 |
2.3 |
|
40-250(I)A |
11.7 |
70 |
7.5 |
2900 |
38 |
2.3 |
|
40-250(I)B |
10.8 |
60 |
7.5 |
2900 |
37 |
2.3 |
|
50-100 |
12.5 |
12.5 |
1.1 |
2900 |
62 |
2.3 |
|
50-125 |
12.5 |
20 |
1.5 |
2900 |
58 |
2.3 |
|
50-125A |
11.2 |
17.2 |
1.1 |
2900 |
57 |
2.3 |
|
50-160 |
12.5 |
32 |
3 |
2900 |
52 |
2.3 |
|
50-160A |
11.7 |
28 |
2.2 |
2900 |
51 |
2.3 |
|
50-160B |
10.5 |
22.5 |
1.5 |
2900 |
50 |
2.3 |
|
50-200 |
12.5 |
50 |
5.5 |
2900 |
46 |
2.3 |
|
50-200A |
11.7 |
44.5 |
4 |
2900 |
45 |
2.3 |
|
50-200B |
10.5 |
35 |
3 |
2900 |
44 |
2.3 |
|
50-250 |
12.5 |
80 |
11 |
2900 |
38 |
2.3 |
|
50-250A |
11.7 |
70 |
7.5 |
2900 |
38 |
2.3 |
|
50-250B |
10.8 |
60 |
7.5 |
2900 |
37 |
2.3 |
|
50-100(I) |
25 |
12.5 |
1.5 |
2900 |
69 |
2.5 |
|
50-100(I)A |
22.4 |
10 |
1.1 |
2900 |
67 |
2.5 |
|
50-125(I) |
25 |
20 |
3 |
2900 |
68 |
2.5 |
|
50-125(I)A |
22.4 |
16 |
2.2 |
2900 |
66 |
2.5 |
|
50-160(I) |
25 |
32 |
4 |
2900 |
63 |
2.5 |
|
50-160(I)A |
23.4 |
28 |
4 |
2900 |
62 |
2.5 |
|
50-160(I)B |
21.6 |
24 |
3 |
2900 |
58 |
2.5 |
|
50-200(I) |
25 |
50 |
7.5 |
2900 |
58 |
2.5 |
|
50-200(I)A |
23.4 |
44 |
7.5 |
2900 |
57 |
2.5 |
|
50-200(I)B |
21.6 |
37 |
5.5 |
2900 |
55 |
2.5 |
|
50-250(I) |
25 |
80 |
15 |
2900 |
50 |
2.5 |
|
50-250(I)A |
23.4 |
70 |
11 |
2900 |
50 |
2.5 |
|
50-250(I)B |
21.6 |
60 |
11 |
2900 |
49 |
2.5 |
|
50-315(I) |
25 |
125 |
30 |
2900 |
40 |
2.5 |
|
50-315(I)A |
23.4 |
110 |
22 |
2900 |
40 |
2.5 |
|
50-315(I)B |
21.6 |
93 |
18.5 |
2900 |
39 |
2.5 |
|
65-100 |
25 |
12.5 |
1.5 |
2900 |
69 |
2.5 |
|
65-100A |
22.4 |
10 |
1.1 |
2900 |
67 |
2.5 |
|
65-125 |
25 |
20 |
3 |
2900 |
68 |
2.5 |
|
65-125A |
22.4 |
16 |
2.2 |
2900 |
66 |
2.5 |
|
65-160 |
25 |
32 |
4 |
2900 |
63 |
2.5 |
|
65-160A |
23.4 |
28 |
4 |
2900 |
62 |
2.5 |
|
65-160B |
21.6 |
24 |
3 |
2900 |
58 |
2.5 |
|
65-200 |
25 |
50 |
7.5 |
2900 |
58 |
2.5 |
|
65-200A |
23.4 |
44 |
7.5 |
2900 |
57 |
2.5 |
|
65-200B |
21.6 |
37 |
5.5 |
2900 |
55 |
2.5 |
|
65-250 |
25 |
80 |
15 |
2900 |
50 |
2.5 |
|
65-250A |
23.4 |
70 |
11 |
2900 |
50 |
2.5 |
|
65-250B |
21.6 |
60 |
11 |
2900 |
49 |
2.5 |
|
65-315 |
25 |
125 |
30 |
2900 |
40 |
2.5 |
|
65-315A |
23.4 |
110 |
22 |
2900 |
40 |
2.5 |
|
65-315B |
21.6 |
93 |
18.5 |
2900 |
39 |
2.5 |
|
65-100(I) |
50 |
12.5 |
3 |
2900 |
73 |
3.0 |
|
65-100(I)A |
44.8 |
10 |
2.2 |
2900 |
72 |
3.0 |
|
65-125(I) |
50 |
20 |
5.5 |
2900 |
72.5 |
3.0 |
|
65-125(I)A |
44.8 |
16 |
4 |
2900 |
71 |
3.0 |
|
65-160(I) |
50 |
32 |
7.5 |
2900 |
71 |
3.0 |
|
65-160(I)A |
46.8 |
28 |
7.5 |
2900 |
70 |
3.0 |
|
65-160(I)B |
43.2 |
24 |
5.5 |
2900 |
69 |
3.0 |
|
65-200(I) |
50 |
50 |
15 |
2900 |
67 |
3.0 |
|
65-200(I)A |
46.8 |
44 |
11 |
2900 |
66 |
3.0 |
|
65-200(I)B |
43 |
37 |
7.5 |
2900 |
65 |
3.0 |
|
65-250(I) |
50 |
80 |
22 |
2900 |
59 |
3.0 |
|
65-250(I)A |
46.8 |
70 |
18.5 |
2900 |
59 |
3.0 |
|
65-250(I)B |
43 |
60 |
15 |
2900 |
58 |
3.0 |
|
65-315(I) |
50 |
125 |
37 |
2900 |
54 |
3.0 |
|
65-315(I)A |
45.8 |
105 |
30 |
2900 |
54 |
3.0 |
|
65-315(I)B |
43 |
93 |
30 |
2900 |
53 |
3.0 |
|
80-100 |
50 |
12.5 |
3 |
2900 |
73 |
3.0 |
|
80-100A |
44.8 |
10 |
2.2 |
2900 |
72 |
3.0 |
|
80-125 |
50 |
20 |
5.5 |
2900 |
72.5 |
3.0 |
|
80-125A |
44.8 |
16 |
4 |
2900 |
71 |
3.0 |
|
80-160 |
50 |
32 |
7.5 |
2900 |
71 |
3.0 |
|
80-160A |
46.8 |
28 |
7.5 |
2900 |
70 |
3.0 |
|
80-160B |
43.2 |
24 |
5.5 |
2900 |
69 |
3.0 |
|
80-200 |
50 |
50 |
15 |
2900 |
67 |
3.0 |
|
80-200A |
46.8 |
44 |
11 |
2900 |
66 |
3.0 |
|
80-200B |
43 |
37 |
7.5 |
2900 |
65 |
3.0 |
|
80-250 |
50 |
80 |
22 |
2900 |
59 |
3.0 |
|
80-250A |
46.8 |
70 |
18.5 |
2900 |
59 |
3.0 |
|
80-250B |
43 |
60 |
15 |
2900 |
58 |
3.0 |
|
80-315 |
50 |
125 |
37 |
2900 |
54 |
3.0 |
|
80-315A |
45.8 |
105 |
30 |
2900 |
54 |
3.0 |
|
80-315B |
43 |
93 |
30 |
2900 |
53 |
3.0 |
|
80-315C |
41 |
85 |
22 |
2900 |
51 |
3.0 |
|
80-350 |
50 |
150 |
55 |
2900 |
66 |
3.0 |
|
80-350A |
44 |
142 |
45 |
2900 |
65 |
3.0 |
|
80-350B |
40 |
135 |
37 |
2900 |
63 |
3.0 |
|
80-100(I) |
100 |
12.5 |
5.5 |
2900 |
76 |
4.5 |
|
80-100(I)A |
89 |
10 |
4 |
2900 |
74 |
4.5 |
|
80-125(I) |
100 |
20 |
11 |
2900 |
76 |
4.5 |
|
80-125(I)A |
89 |
16 |
7.5 |
2900 |
74 |
4.5 |
|
80-160(I) |
100 |
32 |
15 |
2900 |
76 |
4.5 |
|
80-160(I)A |
93.5 |
28 |
11 |
2900 |
74 |
4.5 |
|
80-160(I)B |
86.4 |
24 |
11 |
2900 |
72 |
4.5 |
|
80-200(I) |
100 |
50 |
22 |
2900 |
74 |
4.0 |
|
80-200(I)A |
93.5 |
44 |
18.5 |
2900 |
73 |
4.0 |
|
80-200(I)B |
86.4 |
37 |
15 |
2900 |
71 |
4.0 |
|
80-250(I) |
100 |
80 |
37 |
2900 |
69 |
4.0 |
|
80-250(I)A |
93.5 |
70 |
30 |
2900 |
68 |
4.0 |
|
80-250(I)B |
86.4 |
60 |
30 |
2900 |
66 |
4.0 |
|
80-315(I) |
100 |
125 |
75 |
2900 |
66 |
4.0 |
|
80-315(I)A |
93.5 |
110 |
55 |
2900 |
66 |
4.0 |
|
80-315(I)B |
86.4 |
93 |
45 |
2900 |
65 |
4.0 |
|
80-315(I)C |
82 |
85 |
37 |
2900 |
63 |
4.0 |
|
100-100 |
100 |
12.5 |
5.5 |
2900 |
76 |
4.5 |
|
100-100A |
89 |
10 |
4 |
2900 |
74 |
4.5 |
|
100-125 |
100 |
20 |
11 |
2900 |
76 |
4.5 |
|
100-125A |
89 |
16 |
7.5 |
2900 |
74 |
4.5 |
|
100-160 |
100 |
32 |
15 |
2900 |
76 |
4.5 |
|
100-160A |
93.5 |
28 |
11 |
2900 |
74 |
4.5 |
|
100-160B |
86.4 |
24 |
11 |
2900 |
72 |
4.5 |
|
100-200 |
100 |
50 |
22 |
2900 |
74 |
4.0 |
|
100-200A |
93.5 |
44 |
18.5 |
2900 |
73 |
4.0 |
|
100-200B |
86.4 |
37 |
15 |
2900 |
71 |
4.0 |
|
100-250 |
100 |
80 |
37 |
2900 |
69 |
4.0 |
|
100-250A |
93.5 |
70 |
30 |
2900 |
68 |
4.0 |
|
100-250B |
86.4 |
60 |
30 |
2900 |
66 |
4.0 |
|
100-315 |
100 |
125 |
75 |
2900 |
66 |
4.0 |
|
100-315A |
93.5 |
110 |
55 |
2900 |
66 |
4.0 |
|
100-315B |
86.4 |
93 |
45 |
2900 |
65 |
4.0 |
|
100-100(I) |
160 |
12.5 |
11 |
2900 |
73 |
4.5 |
|
100-125(I) |
160 |
20 |
15 |
2900 |
74 |
4.5 |
|
100-125(I)A |
143 |
16 |
11 |
2900 |
72 |
4.5 |
|
100-160(I) |
160 |
32 |
22 |
2900 |
79 |
5.6 |
|
100-160(I)A |
150 |
28 |
18.5 |
2900 |
76 |
5.0 |
|
100-200(I) |
160 |
50 |
37 |
2900 |
79 |
5.2 |
|
100-200(I)A |
150 |
45 |
30 |
2900 |
74 |
4.5 |
|
100-200(I)B |
138 |
40 |
22 |
2900 |
72 |
4.5 |
|
100-250(I) |
160 |
80 |
55 |
2900 |
77 |
4.8 |
|
100-250(I)A |
140 |
70 |
45 |
2900 |
72 |
4.5 |
|
100-250(I)B |
100 |
65 |
37 |
2900 |
70 |
4.5 |
|
100-350 |
100 |
150 |
90 |
2900 |
57 |
4.0 |
|
100-350A |
87 |
142 |
75 |
2900 |
75 |
4.0 |
|
100-350B |
82 |
135 |
55 |
2900 |
75 |
4.0 |
|
125-100 |
160 |
12.5 |
11 |
2900 |
82 |
4.0 |
|
125-100A |
143 |
10 |
7.5 |
2900 |
77 |
4.0 |
|
125-125 |
160 |
20 |
15 |
2900 |
80 |
4.0 |
|
125-125A |
143 |
16 |
11 |
2900 |
77 |
4.0 |
|
125-160 |
200 |
32 |
30 |
2900 |
78 |
4.0 |
|
125-160A |
187 |
28 |
22 |
2900 |
76 |
4.0 |
|
125-160B |
180 |
24.5 |
18.5 |
2900 |
73 |
4.0 |
|
125-200 |
200 |
50 |
45 |
2900 |
77 |
5.5 |
|
125-200A |
187 |
44 |
37 |
2900 |
76 |
5.5 |
|
125-200B |
172 |
37 |
30 |
2900 |
75 |
5.5 |
|
125-250 |
200 |
80 |
75 |
2900 |
75 |
5.0 |
|
125-250A |
187 |
70 |
55 |
2900 |
74 |
5.5 |
|
125-250B |
172 |
60 |
45 |
2900 |
73 |
5.5 |
|
125-315 |
200 |
125 |
110 |
2900 |
70 |
5.0 |
|
125-315A |
187 |
110 |
90 |
2900 |
70 |
5.0 |
|
125-315B |
172 |
93 |
75 |
2900 |
69 |
5.0 |
|
125-315C |
160 |
78 |
55 |
2900 |
67 |
5.0 |
|
150-125 |
160 |
20 |
11 |
2900 |
76 |
4.0 |
|
150-125A |
150 |
16 |
7.5 |
2900 |
77 |
4.0 |
|
150-160 |
160 |
32 |
22 |
2900 |
75 |
4.0 |
|
150-160A |
150 |
28 |
18.5 |
2900 |
76 |
4.0 |
|
150-160B |
140 |
24 |
15 |
2900 |
73 |
4.0 |
|
150-200 |
160 |
50 |
37 |
2900 |
77 |
5.5 |
|
150-200A |
150 |
44 |
30 |
2900 |
76 |
5.5 |
|
150-200B |
140 |
38 |
22 |
2900 |
75 |
5.5 |
|
150-250 |
200 |
80 |
75 |
2900 |
75 |
5.0 |
|
150-250A |
187 |
70 |
55 |
2900 |
74 |
5.5 |
|
150-250B |
172 |
60 |
45 |
2900 |
73 |
5.5 |
|
150-315 |
200 |
125 |
110 |
2900 |
70 |
5.0 |
|
150-315A |
187 |
110 |
90 |
2900 |
70 |
5.0 |
|
150-315B |
172 |
93 |
75 |
2900 |
69 |
5.0 |
低轉速：
|
型號 |
流量 |
揚程 |
電機功率 |
轉速 |
|
40-125(I) |
6.3 |
5 |
0.55 |
1450 |
|
40-160(I) |
6.3 |
8 |
0.55 |
1450 |
|
40-160(I)A |
5.5 |
6 |
0.55 |
1450 |
|
40-200(I) |
6.3 |
12.5 |
0.75 |
1450 |
|
40-200(I)A |
5.8 |
11 |
0.55 |
1450 |
|
40-250(I) |
6.3 |
20 |
1.5 |
1450 |
|
40-250(I)A |
5.8 |
17 |
1.1 |
1450 |
|
50-125 |
6.3 |
5 |
0.55 |
1450 |
|
50-160 |
6.3 |
8 |
0.55 |
1450 |
|
50-160A |
5.5 |
6 |
0.55 |
1450 |
|
50-200 |
6.3 |
12.5 |
0.75 |
1450 |
|
50-200A |
5.8 |
11 |
0.55 |
1450 |
|
50-250 |
6.3 |
20 |
1.5 |
1450 |
|
50-250A |
5.8 |
17 |
1.1 |
1450 |
|
50-125(I) |
12.5 |
5 |
0.55 |
1450 |
|
50-160(I) |
12.5 |
8 |
0.75 |
1450 |
|
50-160(I)A |
11 |
6 |
0.55 |
1450 |
|
50-200(I) |
12.5 |
12.5 |
1.1 |
1450 |
|
50-200(I)A |
11.2 |
10 |
0.75 |
1450 |
|
50-250(I) |
12.5 |
20 |
2.2 |
1450 |
|
50-250(I)A |
11.7 |
17.5 |
1.5 |
1450 |
|
50-250(I)B |
10 |
13 |
1.1 |
1450 |
|
50-315(I) |
12.5 |
32 |
4 |
1450 |
|
50-315(I)A |
11.7 |
28 |
3 |
1450 |
|
50-315(I)B |
10 |
21 |
3 |
1450 |
|
65-125 |
12.5 |
5 |
0.55 |
1450 |
|
65-160 |
12.5 |
8 |
0.75 |
1450 |
|
65-160A |
11 |
6 |
0.55 |
1450 |
|
65-200 |
12.5 |
12.5 |
1.1 |
1450 |
|
65-200A |
11.2 |
10 |
0.75 |
1450 |
|
65-250 |
12.5 |
20 |
2.2 |
1450 |
|
65-250A |
11.7 |
17.5 |
1.5 |
1450 |
|
65-250B |
10 |
13 |
1.1 |
1450 |
|
65-315 |
12.5 |
32 |
4 |
1450 |
|
65-315A |
11.7 |
28 |
3 |
1450 |
|
65-315B |
10 |
21 |
3 |
1450 |
|
65-125(I) |
25 |
5 |
0.75 |
1450 |
|
65-160(I) |
25 |
8 |
1.5 |
1450 |
|
65-160(I)A |
22 |
6 |
1.1 |
1450 |
|
65-200(I) |
25 |
12.5 |
2.2 |
1450 |
|
65-200(I)A |
23.3 |
11 |
1.5 |
1450 |
|
65-250(I) |
25 |
20 |
3 |
1450 |
|
65-250(I)A |
22.2 |
15.8 |
2.2 |
1450 |
|
65-250(I)B |
20 |
12.8 |
1.54 |
1450 |
|
65-315(I) |
25 |
32 |
5.5 |
1450 |
|
65-315(I)A |
22.5 |
26 |
4 |
1450 |
|
65-315(I)B |
20 |
21 |
3 |
1450 |
|
80-125 |
25 |
5 |
0.75 |
1450 |
|
80-160 |
25 |
8 |
1.5 |
1450 |
|
80-160A |
22 |
6 |
1.1 |
1450 |
|
80-200 |
25 |
12.5 |
2.2 |
1450 |
|
80-200A |
23.3 |
11 |
1.5 |
1450 |
|
80-250 |
25 |
20 |
3 |
1450 |
|
80-250A |
22.2 |
15.8 |
2.2 |
1450 |
|
80-250B |
20 |
12.8 |
1.5 |
1450 |
|
80-315 |
25 |
32 |
5.5 |
1450 |
|
80-315A |
22.5 |
26 |
4 |
1450 |
|
80-315B |
20 |
21 |
3 |
1450 |
|
80-125(I) |
50 |
5 |
1.5 |
1450 |
|
80-160(I) |
50 |
8 |
2.2 |
1450 |
|
80-160(I)A |
44.7 |
6 |
1.5 |
1450 |
|
80-160(I)B |
43.2 |
5.8 |
1.5 |
1450 |
|
80-200(I) |
50 |
12.5 |
4 |
1450 |
|
80-200(I)A |
44.7 |
10 |
3 |
1450 |
|
80-250(I) |
50 |
20 |
5.5 |
1450 |
|
80-250(I)A |
46 |
17 |
4 |
1450 |
|
80-250(I)B |
40.5 |
13 |
3 |
1450 |
|
80-315(I) |
50 |
32 |
11 |
1450 |
|
80-315(I)A |
46 |
27.9 |
7.5 |
1450 |
|
80-315(I)B |
40.5 |
21 |
5.5 |
1450 |
|
100-125 |
50 |
5 |
1.5 |
1450 |
|
100-160 |
50 |
8 |
2.2 |
1450 |
|
100-160A |
46 |
6 |
1.5 |
1450 |
|
100-200 |
50 |
12.5 |
4 |
1450 |
|
100-200A |
44.7 |
10 |
3 |
1450 |
|
100-250 |
50 |
20 |
5.5 |
1450 |
|
100-250A |
46 |
17 |
4 |
1450 |
|
100-250B |
40.5 |
13 |
3 |
1450 |
|
100-315 |
50 |
32 |
11 |
1450 |
|
100-315A |
46 |
27.9 |
7.5 |
1450 |
|
100-315B |
40.5 |
21 |
5.5 |
1450 |
|
100-125(I) |
80 |
5 |
2.2 |
1450 |
|
100-160(I) |
80 |
8 |
3 |
1450 |
|
100-160(I)A |
72 |
6.5 |
2.2 |
1450 |
|
100-200(I) |
80 |
12.5 |
5.5 |
1450 |
|
100-200(I)A |
72 |
10 |
4 |
1450 |
|
100-250(I) |
80 |
20 |
11 |
1450 |
|
100-250(I)A |
75 |
17.5 |
7.5 |
1450 |
|
100-250(I)B |
69 |
15 |
5.5 |
1450 |
|
100-315(I) |
80 |
32 |
15 |
1450 |
|
100-315(I)A |
75 |
27.5 |
11 |
1450 |
|
100-315(I)B |
70 |
24 |
11 |
1450 |
|
100-400(I) |
80 |
50 |
22 |
1450 |
|
100-400(I)A |
75 |
44 |
18.5 |
1450 |
|
100-400(I)B |
70 |
38 |
15 |
1450 |
|
125-125 |
100 |
5 |
2.2 |
1450 |
|
125-160 |
100 |
8 |
4 |
1450 |
|
125-160A |
87 |
6 |
4 |
1450 |
|
125-200 |
100 |
12.5 |
7.5 |
1450 |
|
125-200A |
89 |
10 |
5.5 |
1450 |
|
125-250 |
100 |
220 |
11 |
1450 |
|
125-250A |
93.5 |
17.5 |
7.5 |
1450 |
|
125-250B |
87 |
15 |
7.5 |
1450 |
|
125-315 |
100 |
32 |
15 |
1450 |
|
125-315A |
91 |
27 |
11 |
1450 |
|
125-315B |
87 |
24 |
11 |
1450 |
|
125-400 |
100 |
50 |
30 |
1450 |
|
125-400A |
94 |
44 |
22 |
1450 |
|
125-400B |
87 |
37.5 |
18.5 |
1450 |
|
125-200(I) |
160 |
12.5 |
11 |
1450 |
|
125-200(I)A |
143 |
10 |
7.5 |
1450 |
|
125-250(I) |
160 |
20 |
15 |
1450 |
|
125-250(I)A |
147 |
17 |
11 |
1450 |
|
125-250(I)B |
134 |
14 |
7.5 |
1450 |
|
125-315(I) |
160 |
32 |
22 |
1450 |
|
125-315(I)A |
150 |
28 |
18.5 |
1450 |
|
125-315(I)B |
138 |
24 |
15 |
1450 |
|
125-400(I) |
160 |
50 |
37 |
1450 |
|
125-400(I)A |
150 |
44 |
30 |
1450 |
|
125-400(I)B |
138 |
38 |
30 |
1450 |
|
150-200 |
160 |
12.5 |
11 |
1450 |
|
150-200A |
143 |
10 |
7.5 |
1450 |
|
150-250 |
160 |
20 |
15 |
1450 |
|
150-250A |
147 |
17 |
11 |
1450 |
|
150-250B |
134 |
14 |
7.5 |
1450 |
|
150-315 |
160 |
32 |
22 |
1450 |
|
150-315A |
150 |
28 |
18.5 |
1450 |
|
150-315B |
138 |
24 |
15 |
1450 |
|
150-400 |
160 |
50 |
37 |
1450 |
|
150-400A |
150 |
44 |
30 |
1450 |
|
150-400B |
138 |
38 |
30 |
1450 |
|
150-200(I) |
200 |
12.5 |
15 |
1450 |
|
150-200(I)A |
179 |
10 |
11 |
1450 |
|
150-250(I) |
200 |
20 |
18.5 |
1450 |
|
150-250(I)A |
187 |
17.5 |
15 |
1450 |
|
150-250(I)B |
173 |
14 |
11 |
1450 |
|
150-315(I) |
200 |
32 |
30 |
1450 |
|
150-315(I)A |
187 |
28 |
22 |
1450 |
|
150-315(I)B |
173 |
24 |
18.5 |
1450 |
|
150-400(I) |
200 |
50 |
45 |
1450 |
|
150-400(I)A |
187 |
44 |
37 |
1450 |
|
150-400(I)B |
173 |
37.5 |
30 |
1450 |
|
200-200 |
200 |
12.5 |
15 |
1450 |
|
200-200A |
179 |
10 |
11 |
1450 |
|
200-250 |
200 |
20 |
18.5 |
1450 |
|
200-250A |
187 |
17.5 |
15 |
1450 |
|
200-250B |
173 |
14 |
11 |
1450 |
|
200-315 |
200 |
32 |
30 |
1450 |
|
200-315A |
187 |
28 |
22 |
1450 |
|
200-315B |
173 |
24 |
18.5 |
1450 |
|
200-400 |
200 |
50 |
45 |
1450 |
|
200-400A |
187 |
44 |
37 |
1450 |
|
200-400B |
173 |
37.5 |
30 |
1450 |
|
200-200(I) |
400 |
12.5 |
22 |
1450 |
|
200-200(I)A |
358 |
10 |
18.5 |
1450 |
|
200-250(I) |
400 |
20 |
30 |
1450 |
|
200-250(I)A |
358 |
16 |
22 |
1450 |
|
200-250(I)B |
322 |
13 |
18.5 |
1450 |
|
200-315(I) |
400 |
32 |
55 |
1450 |
|
200-315(I)A |
374 |
28 |
45 |
1450 |
|
200-315(I)B |
346 |
24 |
37 |
1450 |
|
200-400(I) |
400 |
50 |
90 |
1450 |
|
200-400(I)A |
374 |
44 |
75 |
1450 |
|
200-400(I)B |
347 |
38 |
55 |
1450 |
|
200-400(I)C |
320 |
32 |
45 |
1450 |
|
250-250 |
550 |
20 |
45 |
1450 |
|
250-250A |
490 |
16 |
37 |
1450 |
|
250-315 |
550 |
32 |
75 |
1450 |
|
250-315A |
515 |
28 |
55 |
1450 |
|
250-315B |
476 |
24 |
45 |
1450 |
|
250-400 |
550 |
50 |
110 |
1450 |
|
250-400A |
515 |
44 |
90 |
1450 |
|
250-400B |
476 |
37.5 |
75 |
1450 |
|
300-400 |
720 |
50 |
132 |
1450 |
|
300-400A |
662 |
44 |
110 |
1450 |
|
300-400B |
609 |
38 |
90 |
1450 |
|
300-400C |
561 |
33 |
75 |
1450 |
|
300-460 |
720 |
65 |
200 |
1450 |
|
300-460A |
662 |
55 |
160 |
1450 |
|
300-460B |
609 |
45 |
110 |
1450 |
|
300-460C |
561 |
38 |
90 |
1450 |
|
300-510 |
720 |
80 |
250 |
1450 |
|
300-510A |
662 |
70.5 |
200 |
1450 |
|
300-510B |
609 |
62 |
160 |
1450 |
|
300-510C |
561 |
54.5 |
132 |
1450 |
|
300-235 |
720 |
18 |
55 |
970 |
|
300-235A |
657 |
15 |
45 |
970 |
|
300-300 |
720 |
28 |
75 |
970 |
|
300-300A |
666 |
24 |
75 |
970 |
|
300-300B |
623 |
21 |
55 |
970 |
|
300-380 |
720 |
44 |
132 |
970 |
|
300-380A |
666 |
38 |
110 |
970 |
|
300-380B |
623 |
33 |
90 |
970 |
|
350-250 |
800 |
20 |
75 |
970 |
|
350-250A |
715 |
16 |
55 |
970 |
|
350-315 |
800 |
32 |
90 |
970 |
|
350-315A |
748 |
28 |
75 |
970 |
|
350-315B |
692 |
24 |
75 |
970 |
|
350-400 |
800 |
50 |
160 |
970 |
|
350-400A |
750 |
44 |
132 |
970 |
|
350-400B |
697 |
38 |
110 |
970 |
|
400-400 |
1080 |
12.5 |
55 |
970 |
|
400-400A |
966 |
10 |
45 |
970 |
|
400-500 |
1080 |
20 |
90 |
970 |
|
400-500A |
966 |
17 |
75 |
970 |
|
400-500B |
935 |
15 |
55 |
970 |
|
400-625 |
1080 |
32 |
132 |
970 |
|
400-625A |
996 |
27 |
110 |
970 |
|
400-625B |
935 |
24 |
90 |
970 |
|
500-400 |
1200 |
12.5 |
75 |
970 |
|
500-400A |
1073 |
10 |
55 |
970 |
|
500-500 |
1200 |
20 |
110 |
970 |
|
500-500A |
1106 |
17 |
90 |
970 |
|
500-500B |
1040 |
15 |
75 |
970 |
|
500-625 |
1200 |
32 |
160 |
970 |
|
500-625A |
1106 |
27 |
132 |
970 |
|
500-625B |
1040 |
24 |
110 |
970 |
相關產品
上一篇: IH型單級單吸化工離心泵
下一篇： ZX型臥式自吸式離心泵
