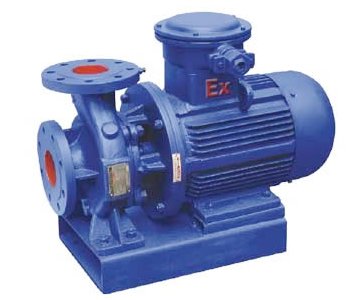

ISWB臥式單級單吸防爆管道油泵
ISWB臥式單級單吸防爆油泵,是在ISW基礎上派聲生出適用油泵。該系列泵性能優、可靠性高、壽命長、結構合理、外形美觀,具有行業領先水平。ISWB臥式單級單吸防爆油泵,供輸送汽油、煤油、柴油等石油產品,被輸送介質溫度為-20℃~+105℃。
全國咨詢熱線:
0577-67983721
- 產品詳細
ISWB型臥式單級防爆管道離心泵概述
ISWB臥式單級單吸防爆油泵,是在ISW基礎上派聲生出適用油泵。該系列泵性能優、可靠性高、壽命長、結構合理、 外形美觀,具有行業領先水平。
ISWB型臥式單級防爆管道離心泵用途
ISWB臥式單級單吸防爆油泵,供輸送汽油、煤油、柴油等石油產品,被輸送介質溫度為-20℃~+105℃。
ISWB型臥式單級防爆管道離心泵工作條件
1、吸入壓力≤1.6MPa,或泵系統高工作壓力 ≤1.6MPa,即泵吸入口壓力+泵揚程≤1.6MPa、泵靜壓試驗壓力為2.5MPa,訂貨時請注明系統工作壓力。泵系統工作壓力大于1.6MPa時應 在訂貨時另行提出,以便在制造時泵的過流部分和聯接部分采用鑄鋼材料。
2、所輸送介質中固體顆粒體積含量不超過單位體積的0.1%,粒度<0.2mm。
注:如使用介質為帶有細小顆粒,請?jiān)谟嗀洉r(shí)注明,以便廠家采用耐磨式機械密封。
ISWB型臥式單級防爆管道離心泵產品特點
運行平穩:泵軸的絕對同心度及葉輪優異的動靜平衡,保證平穩運行,絕無振動。
滴水不漏:不同材質的硬質合金密封,保證了不同介質輸送均無泄漏。
噪音低:兩個低噪音軸承支撐下的水泵,運轉平穩,除電機微弱聲響,基本無噪音。
故障率低:結構簡單合理,關鍵部分采用國際一流品質;配套,整機無故障工作時間大大提高。
維修方便:更換密封、軸承,簡易方便。
占地更?。撼隹诳上蜃蟆⑾蛴?、向上三個方向,便于管道布置安裝,節省空間。
ISWB型臥式單級防爆管道離心泵型號意義
ISWB型臥式單級防爆管道離心泵性能參數表
型號
|
流量
|
揚程
(m) |
效率
(%) |
轉速
(r/min) |
電機功率
(kw) |
|
---|---|---|---|---|---|---|
(m3/h)
|
(L/s)
|
|||||
15-80 | 1.1 1.5 2.0 |
0.30 0.42 0.55 |
8.5 8.0 7.0 |
26 34 34 |
2800 | 0.18 |
20-110 | 1.8 2.5 3.3 |
0.50 0.69 0.91 |
16.0 15.0 13.5 |
25 34 35 |
2800 | 0.37 |
20-125 | 1.8 2.5 3.3 |
0.50 0.69 0.91 |
21.0 20.0 18.6 |
28 35 34 |
2800 | 0.75 |
20-160 | 1.8 2.5 3.3 |
0.50 0.69 0.91 |
33 32 30 |
19 25 23 |
2900 | 1.5 |
25-110 | 2.8 4.0 5.2 |
0.78 1.11 1.44 |
16.0 15.0 13.5 |
34 42 41 |
2900 | 0.55 |
25-125 | 2.8 4.0 5.2 |
0.78 1.11 1.44 |
20.6 20.0 18.0 |
28 36 35 |
2900 | 0.75 |
25-125A | 2.5 3.6 4.6 |
0.69 1.00 1.28 |
17.0 16.0 14.4 |
29 35 31 |
2900 | 0.75 |
25-160 | 2.8 4.0 5.2 |
0.78 1.11 1.44 |
33 32 30 |
24 32 33 |
2900 | 1.5 |
25-160A | 2.6 3.7 4.9 |
0.12 1.03 1.36 |
29 28 26 |
27 31 29 |
2900 | 1.1 |
32-100 | 3.5 4.5 5.3 |
0.97 1.24 1.47 |
14.5 12.5 11 |
35 40 38 |
2900 | 0.55 |
30-125 | 3.5 5.0 6.5 |
0.97 1.39 1.80 |
22 20 18 |
40 44 42 |
2900 | 0.75 |
32-125A | 3.1 4.5 5.8 |
0.86 1.25 1.61 |
17.6 16.0 14.4 |
39 43 40 |
2900 | 0.55 |
32-160 | 4.4 6.3 8.3 |
1.22 1.75 2.32 |
33 32 30 |
40 44 42 |
2900 | 1.5 |
32-160A | 2.8 4.0 5.2 |
0.78 1.11 1.44 |
27 25 21 |
31 34 32 |
2900 | 1.1 |
32-200 | 3.1 4.5 5.8 |
0.86 1.25 1.61 |
50.5 50.0 48.0 |
28 32 30 |
2900 | 3 |
32-200A | 2.8 4.0 5.2 |
0.78 1.11 1.44 |
44.6 44 42.7 |
34 40 42 |
2900 | 2.2 |
32-160(1) | 4.4 6.3 8.3 |
1.22 1.75 2.32 |
33.2 32 30.2 |
34 40 42 |
2900 | 2.2 |
32-200(1) | 4.4 6.3 8.3 |
1.22 1.75 2.32 |
50.5 50.0 48.0 |
26 33 35 |
2900 | 4 |
40-100 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
13.2 12.5 11.3 |
48 54 53 |
2900 | 0.55 |
40-100A | 3.9 5.6 7.4 |
1.08 1.56 2.06 |
10.6 10.0 9.0 |
48 52 50 |
2900 | 0.37 |
40-125 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
21 20 18 |
41 46 43 |
2900 | 1.1 |
40-125A | 3.9 5.6 7.4 |
1.08 1.56 2.06 |
17.6 16 14.4 |
40 45 41 |
2900 | 0.75 |
40-160 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
33 32 30 |
35 40 40 |
2900 | 2.2 |
40-160A | 4.1 5.9 7.8 |
1.14 1.64 2.17 |
29 28 26.3 |
34 39 39 |
2900 | 1.5 |
40-160B | 3.8 5.5 7.2 |
1.06 1.53 2.0 |
25.5 24 22.5 |
34 38 37 |
2900 | 1.1 |
40-200 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
51 50 48 |
26 33 32 |
2900 | 4 |
40-200A | 4.1 5.9 7.8 |
1.14 1.64 2.17 |
45 44 42 |
26 31 32 |
2900 | 3 |
40-200B | 3.7 5.3 7.0 |
1.03 1.47 1.94 |
38 36 34.5 |
25 29 27 |
2900 | 2.2 |
40-250 | 4.4 6.3 8.3 |
1.22 1.75 2.31 |
82 80 74 |
24 28 28 |
2900 | 7.5 |
40-250A | 4.1 5.9 7.8 |
1.14 1.64 2.17 |
72 70 65 |
24 28 27 |
2900 | 5.5 |
40-250B | 3.8 5.5 7.0 |
1.06 1.53 1.94 |
61.5 60 56 |
23 27 26 |
2900 | 4 |
40-100(1) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.2 12.5 11.3 |
55 62 60 |
2900 | 1.1 |
40-100(1)A | 8.0 11.0 14.5 |
2.22 3.05 4.03 |
10.6 10.0 9.0 |
57 60 59 |
2900 | 0.75 |
40-125(1) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
21.2 20.0 17.8 |
49 58 57 |
2900 | 1.5 |
40-125(1)A | 8.0 11.0 14.5 |
2.22 3.05 4.03 |
17.0 16.0 14.0 |
53 57 55 |
2900 | 1.1 |
40-160(1) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 51 |
2900 | 3 |
40-160(1)A | 8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 | 2.2 |
40-160(1)B | 7.3 10.4 13.5 |
2.38 2.89 3.75 |
23 22 20.5 |
50 | 2900 | 1.5 |
40-200(1) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
51.2 50 48 |
38 46 46 |
2900 | 5.5 |
40-200(1)A | 8.3 11.7 15.3 |
2.31 3.25 4.25 |
45.0 44 42 |
37 45 45 |
2900 | 4 |
40-200(1)B | 7.5 10.6 13.8 |
2.08 2.94 3.83 |
37 36 34 |
44 | 2900 | 3 |
40-250(1) | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
81.2 80 77.5 |
31 38 40 |
2900 | 11 |
40-250(1)A | 8.2 11.6 15.2 |
2.28 3.22 4.22 |
71.0 70 68 |
38 | 2900 | 7.5 |
40-250(1)B | 7.6 10.8 14 |
2.11 3.0 3.89 |
61.4 60 58 |
37 | 2900 | 5.5 |
40-250(1)C | 7.1 10.0 13.1 |
1.97 2.78 3.64 |
53.2 52 50.4 |
36 | 2900 | 5.5 |
50-100 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
13.6 12.5 11.3 |
55 62 60 |
2900 | 1.1 |
50-100A | 8 11 14.5 |
2.22 3.05 4.03 |
11 10 9 |
60 | 2900 | 0.75 |
50-125 | 8.8 12.5 16.3 |
2.44 3.74 4.53 |
21.5 20 17.8 |
49 58 57 |
2900 | 1.5 |
50-125A | 8 11 14.5 |
2.22 3.05 4.03 |
17 16 14 |
57 | 2900 | 1.1 |
50-160 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
33 32 30 |
45 52 51 |
2900 | 3 |
50-160A | 8.2 11.7 15.2 |
2.28 3.25 4.22 |
29 28 26 |
44 51 50 |
2900 | 2.2 |
50-160B | 7.3 10.4 13.5 |
2.38 2.89 3.75 |
23 22 20.5 |
50 | 2900 | 1.5 |
50-200 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
52 50 48 |
38 46 46 |
2900 | 5.5 |
50-200A | 8.3 11.7 15.3 |
2.31 3.25 4.25 |
45.8 44 42 |
37 45 45 |
2900 | 4 |
50-200B | 7.5 10.6 13.8 |
2.08 2.94 3.83 |
37 36 34 |
44 | 2900 | 3 |
50-250 | 8.8 12.5 16.3 |
2.44 3.47 4.53 |
82 80 77.5 |
29 38 40 |
2900 | 11 |
50-250A | 8.2 11.6 15.2 |
2.28 3.22 4.22 |
71.5 70 68 |
38 |
2900 | 75 |
50-250B | 7.6 10.8 14 |
2.11 3.0 3.89 |
61.4 60 58 |
37 | 2900 | 5.5 |
50-250C | 7.1 10.0 13.1 |
1.97 2.78 3.64 |
53.2 52 504 |
36 | 2900 | 5.5 |
50-100(1) | 17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2900 | 1.5 |
50-100(1)A | 15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 | 1.1 |
50-125(1) | 17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
60 68 67 |
2900 | 3 |
50-125(1)A | 15.6 22.3 29 |
4.33 6.19 8.1 |
17 16 13.6 |
58 66 65 |
2900 | 2.2 |
50-160(1) | 17.5 25 32.5 |
4.68 6.94 9.03 |
34.4 32 27.5 |
54 63 60 |
2900 | 4 |
50-160(1)A | 16.4 23.4 30.4 |
4.56 6.5 8.44 |
30 28 24 |
54 62 59 |
2900 | 3 |
50-160(1)B | 15.0 21.6 28 |
4.17 6.0 7.78 |
26 24 20.6 |
28 | 2900 | 2.2 |
50-200(1) | 17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 | 7.5 |
50-200(1)A | 16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 | 5.5 |
50-200(1)B | 15.2 21.8 28.3 |
4.22 6.06 7.86 |
40 38 34.5 |
55 | 2900 | 4 |
50-250(1) | 17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 | 15 |
50-250(1)A | 16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 50 52 |
2900 | 11 |
50-250(1)B | 15 21.6 28 |
4.17 6.0 7.78 |
61 60 57.4 |
38 49 54 |
2900 | 7.5 |
50-315(1) | 17.5 25 32.5 |
4.86 6.94 9.03 |
128 125 122 |
30 40 44 |
2900 | 30 |
50-315(1)A | 16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
30 40 44 |
2900 | 22 |
50-315(1)B | 15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
39 | 2900 | 18.5 |
50-315(1)C | 14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 | 2900 | 15 |
65-100 | 17.5 25 32.5 |
4.86 6.94 9.03 |
13.7 12.5 10.5 |
67 69 69 |
2900 | 1.5 |
65-100A | 15.6 22.3 29 |
4.3 6.19 8.1 |
11 10 8.4 |
65 67 68 |
2900 | 1.1 |
65-125 | 17.5 25 32.5 |
4.86 6.94 9.03 |
21.5 20 18 |
60 68 67 |
2900 | 3 |
65-125A | 15.6 22.3 29 |
4.33 6.19 8.1 |
17 16 14.4 |
58 66 65 |
2900 | 2.2 |
65-160 | 17.5 25 32.5 |
4.86 6.94 9.03 |
34.4 32 27.5 |
54 63 60 |
2900 | 4 |
65-160A | 16.4 23.4 30.4 |
4.56 6.5 8.44 |
30 28 24 |
54 62 59 |
2900 | 3 |
65-160B | 15.0 21.6 28 |
4.17 6.0 7.78 |
26 24 20.6 |
58 | 2900 | 2.2 |
65-200 | 17.5 25 32.5 |
4.86 6.94 9.03 |
52.7 50 45.5 |
49 58 59 |
2900 | 7.5 |
65-200A | 16.4 23.5 30.5 |
4.56 6.53 8.47 |
46.4 44 40 |
48 57 58 |
2900 | 5.5 |
65-200B | 15.2 21.8 28.3 |
4.22 6.06 7.86 |
40 38 34.5 |
55 | 2900 | 4 |
65-250 | 17.5 25 32.5 |
4.86 6.94 9.03 |
82 80 76.5 |
39 50 52 |
2900 | 15 |
65-250A | 16.4 23.4 30.5 |
4.56 6.5 8.47 |
71.5 70 67 |
39 50 52 |
2900 | 11 |
65-250B | 15 21.6 28 |
4.17 6.0 7.78 |
61 60 57.4 |
38 49 54 |
2900 | 7.5 |
65-315 | 17.5 25 32.5 |
4.86 6.94 9.03 |
127 125 122 |
32 40 44 |
2900 | 30 |
65-315A | 16.6 23.7 31 |
4.61 6.58 8.6 |
115 113 110 |
32 40 44 |
2900 | 22 |
65-315B | 15.7 22.5 29.2 |
4.36 6.25 8.0 |
103 101 98 |
39 | 2900 | 18.5 |
65-315C | 14.4 20.6 26.8 |
4.0 5.72 7.44 |
86 85 83 |
38 | 2900 | 15 |
65-100(1) | 35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 | 3 |
65-100(1)A | 31.3 44.7 58 |
8.7 12.4 16.1 |
11 10 8 |
66 72 69 |
2900 | 2.2 |
65-125(1) | 35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 |
65-125(1)A | 31.5 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
66 71 69 |
2900 | 4 |
65-160(1) | 35 50 65 |
9.72 13.9 18.1 |
35 32 28 |
63 71 70 |
2900 | 7.5 |
65-160(1)A | 32.7 46.7 61 |
9.1 13.0 16.9 |
30.6 28 24 |
62 70 69 |
2900 | 5.5 |
65-160(1)B | 30.3 43.3 56.3 |
8.4 12.0 15.6 |
26 24 21 |
69 | 2900 | 4 |
65-200(1) | 35 50 65 |
9.72 13.9 18.1 |
53.5 50 46 |
55 67 68 |
2900 | 15 |
65-200(1)A | 32.8 47 61 |
9.1 13.1 16.9 |
47 44 40 |
54 66 67 |
2900 | 11 |
65-200(1)B | 30.5 43.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
65 | 2900 | 7.5 |
65-250(1) | 35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 | 22 |
65-250(1)A | 32.5 43.3 46.7 |
9.0 13.0 16.9 |
73 70 63 |
52 59 60 |
2900 | 18.5 |
65-250(1)B | 30 56 61 |
8.3 12.0 15.6 |
62 60 54 |
58 | 2900 | 15 |
65-315(1) | 35 50 65 |
9.72 13.9 18.1 |
128 125 121 |
44 54 57 |
2900 | 37 |
65-315(1)A | 32.5 46.5 60.5 |
9.0 12.9 16.8 |
112.6 110 106.4 |
43 54 57 |
2900 | 30 |
65-315(1)B | 31 44.5 58 |
8.6 12.4 16.1 |
102.5 100 98 |
53 | 2900 | 30 |
65-315(1)C | 29 41 53.6 |
8.1 11.4 14.9 |
87 85 83 |
51 | 2900 | 22 |
80-100 | 35 50 65 |
9.72 13.9 18.1 |
13.8 12.5 10 |
67 73 70 |
2900 | 3 |
80-100A | 31.3 44.7 58 |
8.7 12.5 16.1 |
11 10 8 |
66 72 69 |
2900 | 2.2 |
80-125 | 35 50 65 |
9.72 13.9 18.1 |
22 20 17 |
67 72.5 70 |
2900 | 5.5 |
80-125A | 31.3 45 58 |
8.7 12.5 16.1 |
17.5 16 13.6 |
66 71 69 |
2900 | 4 |
80-160 | 35 50 65 |
9.72 13.9 18.1 |
35 32 28 |
63 71 70 |
2900 | 7.5 |
80-160A | 32.7 46.7 61 |
9.1 13.0 16.9 |
30.6 28 24 |
62 70 69 |
2900 | 5.5 |
80-160B | 30.3 43.3 56.3 |
8.4 12.0 15.6 |
26 24 21 |
69 | 2900 | 4 |
80-200 | 35 50 65 |
9.72 13.9 18.1 |
53.5 50 46 |
55 67 68 |
2900 | 15 |
80-200A | 32.8 47 61 |
9.1 13.1 16.9 |
47 44 40 |
54 66 67 |
2900 | 11 |
80-200B | 30.5 43.5 56.6 |
8.5 12.1 15.7 |
40.6 38 33.4 |
65 | 2900 | 7.5 |
80-250 | 35 50 65 |
9.72 13.9 18.1 |
83 80 72 |
52 59 60 |
2900 | 22 |
80-250A | 32.5 46.7 61 |
9.0 13.0 16.9 |
73 70 63 |
52 59 60 |
2900 | 18.5 |
80-250B | 30 43.3 56 |
8.3 12.0 15.6 |
62 60 54 |
58 | 2900 | 15 |
80-315 | 35 50 65 |
9.72 13.9 18.1 |
128 125 122 |
43 54 57 |
2900 | 37 |
80-315A | 32.5 46.5 60.5 |
9.0 12.9 16.8 |
112.6 110 107.4 |
43 54 57 |
2900 | 30 |
80-315B | 31 44.5 58 |
8.6 12.4 16.1 |
102.5 100 98 |
53 | 2900 | 30 |
80-315C | 29 41 53.6 |
8.1 11.4 14.9 |
98 85 83 |
51 | 2900 | 22 |
80-350 | 35 50 65 |
9.72 13.9 18.1 |
153.6 150 142 |
55 66 67 |
2900 | 55 |
80-350A | 31 44.5 58 |
8.6 12.4 16.1 |
145.6 142 134.8 |
65 | 2900 | 45 |
80-350B | 29 41 53.6 |
8.1 11.4 14.9 |
138.6 135 127.8 |
63 | 2900 | 37 |
80-100(1) | 70 100 130 |
19.4 27.8 36.1 |
13.6 12.5 11 |
66 76 75 |
2900 | 5.5 |
80-100(1)A | 62.6 89 116 |
17.4 24.7 32.2 |
11 10 8.8 |
64 74 74 |
2900 | 4 |
80-125(1) | 70 100 130 |
19.4 27.8 36.1 |
23.5 20 14 |
70 76 65 |
2900 | 11 |
80-125(1)A | 62.6 89 116 |
17.4 24.7 32.2 |
19 16 11 |
68 74 65 |
2900 | 7.5 |
80-160(1) | 70 100 130 |
19.4 27.8 36.1 |
36.5 32 24 |
70 76 65 |
2900 | 15 |
80-160(1)A | 65.4 93.5 121.6 |
18.2 26.0 33.8 |
32 28 21 |
68 74 67 |
2900 | 11 |
80-160(1)B | 60.6 86.6 112.6 |
16.8 24.1 31.3 |
26 24 18 |
72 | 2900 | 7.5 |
80-200(1) | 70 100 130 |
19.4 27.8 36.1 |
54 50 42 |
65 74 73 |
2900 | 22 |
80-200(1)A | 65.4 93.5 121.6 |
18.2 26.0 33.8 |
47.5 44 37 |
67 73 72 |
2900 | 18.5 |
80-200(1)B | 61 87 113 |
16.9 24.2 31.4 |
41 38 32 |
71 |
2900 | 15 |
80-250(1) | 70 100 130 |
19.4 27.8 36.1 |
87 80 68 |
62 69 68 |
2900 | 37 |
80-250(1)A | 65.4 93.5 121.6 |
18.2 26.0 33.8 |
76 70 59.5 |
61 68 67 |
2900 | 30 |
80-250(1)B | 61 87 113 |
16.9 24.2 31.4 |
65 60 51 |
66 |
2900 | 22 |
80-315(1) | 70 100 130 |
19.4 27.8 36.1 |
132 125 114 |
55 66 67 |
2900 | 75 |
80-315(1)A | 66.5 95 123.6 |
18.5 26.4 34.3 |
119 113 103 |
55 66 67 |
2900 | 55 |
80-315(1)B | 63 90 117 |
17.5 25 32.5 |
106.6 101 92 |
65 | 2900 | 45 |
80-315(1)C | 58 82 107 |
16.1 22.8 29.7 |
90 85 76 |
63 | 2900 | 37 |
100-100 | 70 100 130 |
19.4 27.8 36.1 |
13.6 12.5 11 |
66 76 75 |
2900 | 5.5 |
100-100A | 62.6 89 116 |
17.4 47 32.2 |
11 10 8.8 |
64 74 74 |
2900 | 4 |
100-125 | 70 100 130 |
19.4 27.8 36.1 |
23.5 20 14 |
70 76 65 |
2900 | 11 |
100-125A | 62.6 89 116 |
17.4 24.7 32.2 |
19 16 11 |
68 74 63 |
2900 | 7.5 |
100-160 | 70 100 130 |
19.4 27.8 36.1 |
36.5 32 24 |
70 76 65 |
2900 | 15 |
100-160A | 65.4 93.5 121.6 |
18.2 26.0 33.8 |
32 28 21 |
68 74 67 |
2900 | 11 |
100-160B | 60.6 86.6 112.5 |
16.8 24.1 31.3 |
27 24 18 |
72 | 2900 | 7.5 |
100-200 | 70 100 130 |
19.4 27.8 36.1 |
54 50 42 |
65 74 73 |
2900 | 22 |
100-200A | 65.4 93.5 121.6 |
18.2 26.0 33.8 |
47.5 44 37 |
64 73 72 |
2900 | 18.5 |
100-200B | 61 87 113 |
16.9 24.2 31.4 |
41 38 32 |
71 | 2900 | 15 |
100-250 | 70 100 130 |
19.4 27.8 36.1 |
87 80 68 |
62 69 68 |
2900 | 37 |
100-250A | 65.4 93.5 121.6 |
18.2 26.0 33.8 |
76 70 59.5 |
61 68 67 |
2900 | 30 |
100-250B | 61 87 113 |
16.9 24.2 31.4 |
65 60 51 |
66 | 2900 | 22 |
100-315 | 70 100 130 |
19.4 27.8 36.1 |
132 125 114 |
55 66 67 |
2900 | 75 |
100-315A | 66.5 95 123.6 |
18.5 26.4 34.3 |
119 113 103 |
65 66 67 |
2900 | 55 |
100-315B | 63 90 117 |
17.5 25 32.5 |
106.6 101 92 |
65 | 2900 | 45 |
100-315C | 58 82 107 |
16.1 27.8 29.7 |
90 85 76 |
63 | 2900 | 37 |
100-350 | 60 100 120 |
16.7 27.8 33.3 |
153.6 150 142 |
72 57 74 |
2900 | 90 |
100-350A | 61 87 113 |
16.9 24.2 31.4 |
145.6 142 134 |
75 | 2900 | 75 |
100-350B | 58 82 107 |
16.1 22.8 29.7 |
138.6 135 127 |
75 | 2900 | 55 |
100-100(1) | 96 160 192 |
26.7 44.4 53.3 |
14 12.5 10 |
64 73 70 |
2900 | 11 |
100-125(1) | 96 160 192 |
26.7 44.4 53.3 |
24 20 14 |
62 74 69 |
2900 | 15 |
100-125(1)A | 84 140 168 |
23.3 39 46.7 |
20 17 12 |
64 72 68 |
2900 | 11 |
100-160(1) | 96 160 192 |
26.7 44.4 53.3 |
36 32 27 |
69 79 75 |
2900 | 22 |
100-160(1)A | 84 140 168 |
23.3 39 46.7 |
32 28 23.5 |
66 76 72 |
2900 | 18.5 |
100-200(1) | 96 160 192 |
26.7 44.4 53.3 |
53 50 45 |
69 79 78 |
2900 | 37 |
100-200(1)A | 84 140 168 |
23.3 39 46.7 |
48 45 40 |
64 74 73 |
2900 | 30 |
100-200(1)B | 60 100 120 |
16.7 27.8 33.3 |
43 40 36 |
72 | 2900 | 22 |
100-250(1) | 96 160 192 |
26.7 44.4 53.3 |
83 80 72 |
65 77 74 |
2900 | 55 |
100-250(1)A | 84 140 168 |
23.3 39 46.7 |
75 72 65 |
60 72 69 |
2900 | 45 |
100-250(1)B | 60 100 120 |
16.7 27.8 33.3 |
68 65 58 |
70 | 2900 | 37 |
125-100 | 96 160 192 |
26.7 44.4 53.3 |
13 12.5 12 |
82 | 2900 | 11 |
125-100A | 86 143 172 |
23.9 39.7 47.8 |
10.4 10 9.6 |
77 | 2900 | 7.5 |
125-125 | 96 160 192 |
26.7 44.4 53.3 |
22.6 20 9.6 |
80 | 2900 | 15 |
125-125A | 86 143 172 |
23.9 39.7 47.8 |
18 16 13.6 |
77 | 2900 | 11 |
125-160 | 96 160 192 |
26.7 44.4 53.3 |
36 32 28 |
78 | 2900 | 22 |
125-160A | 90 150 180 |
25 41.7 50 |
31.5 28 24.5 |
76 |
2900 |
18.5 |
125-160B | 83 138 166 |
21.7 38.3 46.1 |
27 24 21 |
73 | 2900 | 15 |
125-200 | 96 160 192 |
26.7 44.4 53.3 |
55 50 46 |
77 |
2900 | 37 |
125-200A | 90 150 180 |
25 41.7 50 |
48.4 44 40.5 |
76 | 2900 | 30 |
125-200B | 83 138 166 |
31.7 38.3 46.1 |
41.3 37.5 34.5 |
75 | 2900 | 22 |
125-250 | 96 160 192 |
26.7 4.4 53.3 |
87 80 73 |
75 | 2900 | 55 |
125-250A | 90 150 180 |
25 41.7 50 |
84 76 70 |
74 | 2900 | 45 |
125-250B | 83 138 166 |
21.7 38.3 46.1 |
65 60 55 |
73 | 2900 | 37 |
125-315 | 96 160 192 |
26.7 44.7 53.3 |
133 125 119 |
70 | 2900 | 90 |
125-315A | 90 150 180 |
25 41.7 50 |
117 110 104.6 |
70 | 2900 | 75 |
125-315B | 86 143 172 |
23.9 39.7 47.8 |
106.4 100 95.2 |
69 | 2900 | 75 |
125-315C | 80.5 134 161 |
22.4 37.2 44.7 |
96 88 86 |
67 | 2900 | 55 |
150-125 | 96 160 192 |
26.7 44.4 53.3 |
22.6 20 17 |
66 76 76 |
2900 | 15 |
150-125A | 90 150 180 |
25 41.7 50 |
18 16 13.6 |
77 | 2900 | 11 |
150-160 | 96 160 192 |
26.7 44.4 53.3 |
36 32 27 |
75 | 2900 | 22 |
150-160A | 90 150 180 |
25 41.7 50 |
32 28 23.5 |
76 | 2900 | 18.5 |
150-160B | 84 140 168 |
23.3 39 46.7 |
27 24 21 |
73 | 2900 | 15 |
150-200 | 140 200 260 |
38.9 55.6 72.2 |
13.8 12.5 10.6 |
68 78 78 |
1450 | 15 |
150-200A | 125 176 232.5 |
34.7 49.7 64.6 |
11 10 8.5 |
66 76 76 |
1450 | 11 |
150-200B | 110 160 207 |
31 44.4 57.6 |
9.2 8 6.8 |
75 | 1450 | 7.5 |
150-250 | 140 200 260 |
38.9 55.6 72.2 |
21.8 20 17 |
73 79 77 |
1450 | 18.5 |
150-250A | 129 184.4 240 |
35.8 51.2 66.7 |
18.5 17 14.4 |
72 78 76 |
1450 | 15 |
150-250B | 117 167 217.5 |
32.5 46.4 60.4 |
15.2 14 12 |
76 | 1450 | 11 |
150-315 | 140 200 260 |
38.9 55.6 72.2 |
33.8 32 28 |
70 78 73 |
1450 | 30 |
150-315A | 131 187 243 |
36.4 51.9 67.5 |
29.5 28 24.5 |
69 77 77 |
1450 | 22 |
150-315B | 121 173 225 |
33.5 48.1 62.5 |
25 24 21 |
76 |
1450 | 18.5 |
150-350 | 96 160 192 |
26.7 44.4 53.3 |
153.6 150 142.8 |
80 | 2900 | 110 |
150-350A | 90 150 180 |
25 41.7 50 |
145.6 142 134.8 |
70 | 2900 | 90 |
150-350B | 84 140 168 |
23.3 39 46.7 |
138.6 135 127.8 |
65 76 74 |
2900 | 75 |
150-400 | 140 200 260 |
38.9 55.6 72.2 |
53 50 44 |
68 75 71 |
1450 | 45 |
150-400A | 131 187 243 |
36.4 51.9 67.5 |
46.6 44 38.3 |
67 74 70 |
1450 | 37 |
150-400B | 122 174 226.5 |
33.9 48.3 62.9 |
40 38 33 |
73 | 1450 | 30 |
150-400C | 112 160 208 |
31.1 44.4 57.8 |
34 32 28 |
71 | 1450 | 22 |
150-250(1) | 120 200 240 |
33.3 55.6 66.7 |
87 80 72 |
65 76 74 |
2900 | 75 |
150-250(1)A |
112 187 224 |
31.1 51.9 62.2 |
76 |
64 |
2900 |
55 |
150-250(1)B | 104 173 208 |
28.9 48.1 57.8 |
65 60 54 |
63 74 72 |
2900 | 45 |
150-315(1) | 120 200 240 |
33.3 55.6 66.7 |
133 125 120 |
58 73 75 |
2900 | 110 |
150-315(10)A | 112 187 224 |
31.1 51.9 62.2 |
116 110 105 |
57 72 74 |
2900 | 90 |
150-315(1)B | 104 173 208 |
28.9 48.1 57.8 |
100 95 91 |
55 70 72 |
2900 | 75 |
200-200 | 140 200 260 |
38.9 55.6 72.2 |
13.8 12.5 10.6 |
68 78 78 |
1450 | 15 |
200-200A | 125 179 232.5 |
34.7 49.7 64.6 |
11 10 8.5 |
66 76 76 |
1450 | 11 |
200-250 | 140 200 260 |
38.9 55.6 72.2 |
21.8 20 17 |
73 79 77 |
1450 | 18.5 |
200-250A | 129 184.4 240 |
35.8 51.2 66.7 |
18.5 17 14.4 |
72 78 76 |
1450 | 15 |
200-250B | 117 167 217.5 |
32.5 46.4 60.4 |
15.2 14 12 |
76 |
1450 | 11 |
200-315 | 140 200 260 |
38.9 55.6 72.2 |
33.8 32 28 |
70 78 78 |
1450 | 30 |
200-315A | 131 189 243 |
36.4 51.9 67.5 |
29.5 28 24.5 |
69 77 77 |
1450 | 22 |
200-315B | 121 173 225 |
33.6 48.1 62.5 |
25 24 21 |
76 |
1450 | 18.5 |
200-400 | 140 200 260 |
38.9 55.6 72.2 |
53 50 44 |
68 75 71 |
1450 | 45 |
200-400A | 131 187 243 |
36.4 51.9 67.5 |
46.6 44 38.3 |
67 74 70 |
1450 | 37 |
200-400B | 122 174 226.5 |
33.9 48.6 62.9 |
40 38 33 |
73 | 1450 | 30 |
200-400C | 112 160 208 |
31.3 44.4 57.8 |
34 32 28 |
71 | 1450 | 22 |
200-200(1) | 280 400 520 |
77.8 111.1 114 |
13.4 12.5 10.5 |
70 80 79 |
1450 | 22 |
200-200(1)A | 250 358 465 |
69.4 99.4 129.2 |
10.7 10 8.5 |
68 78 77 |
1450 | 18.5 |
200-250(1) | 280 400 520 |
77.8 111.4 114 |
22.2 20 14 |
75 80 72 |
1450 | 30 |
200-250(1)A | 250 358 465 |
69.4 99.6 129.2 |
18 14 11.2 |
73 78 70 |
1450 | 22 |
200-250(1)B | 226 322 419 |
62.8 89.4 116.4 |
14.4 13 7.3 |
70 75 67 |
1450 | 18.5 |
200-315(1) | 280 400 520 |
77.8 111.4 144 |
36 32 26 |
73 80 75 |
1450 | 55 |
200-315(1)A | 262 374 486 |
72.8 103.9 135 |
31.5 28 23 |
72 79 74 |
1450 | 45 |
200-315(1)B | 242 346 450 |
67.2 96.1 125 |
27 24 19.5 |
78 | 1450 | 37 |
200-400(1) | 280 400 520 |
77.8 111.4 144 |
54.5 50 39 |
75 81 77 |
1450 | 75 |
200-400(1)A | 262 374 486 |
72.8 103.9 135 |
48 44 34 |
80 | 14550 | 75 |
200-400(1)B | 242 346 450 |
67.2 96.1 125 |
41.4 38 29.6 |
78 | 1450 | 55 |
200-400(1)C | 224 320 416 |
62.2 88.9 115.6 |
34.9 32 25 |
76 | 1450 | 45 |
250-250 | 350 550 650 |
97.2 152.8 180.5 |
22 20 16 |
78 82 81 |
1450 | 45 |
250-250A | 300 500 600 |
83.3 139 166.7 |
18.3 17 14 |
76 80 80 |
1450 | 37 |
250-235 | 300 500 600 |
83.3 139 166.7 |
14 12.5 11 |
73 78 70 |
1450 | 22 |
250-300 | 300 500 600 |
83.3 139 166.7 |
22 20 16 |
78 | 1450 | 37 |
250-315 | 350 550 650 |
97.2 152.8 180.5 |
34 32 28 |
76 80 79 |
1450 | 75 |
250-315A | 300 500 600 |
83.3 139 166.7 |
29.5 28 24 |
74 78 77 |
1450 | 55 |
250-315B | 260 450 250 |
72.2 125 144.4 |
25 24 20 |
70 74 72 |
1450 | 45 |
250-400 | 300 500 600 |
83.3 139 166.7 |
54.5 50 39 |
72 | 1480 | 110 |
250-400A | 262 450 521 |
72.7 125 144.7 |
46.6 44 38.3 |
69 | 1480 | 90 |
250-500 | 385 550 660 |
106.9 152.8 183.3 |
87 80 68 |
80 | 1480 | 160 |
250-500A | 357 510 612 |
99.2 141.7 170 |
76.1 70 59.5 |
78 | 1480 | 132 |
250-500B | 329 470 564 |
91.4 130.6 156.7 |
65.2 60 51 |
75 | 1480 | 110 |
300-235 | 540 720 900 |
150 200 250 |
20.5 18 15.0 |
77 81 74 |
1450 | 55 |
300-235A | 450 600 720 |
125 166 200 |
17.2 15 12.5 |
74 79 77 |
1450 | 45 |
300-235B | 420 540 650 |
116.7 150 181 |
14.3 12.8 10.5 |
73 78 70 |
1450 | 37 |
300-250 | 540 720 900 |
150 200 250 |
22.5 20 17 |
80 83 84 |
1450 | 55 |
300-250A | 450 600 720 |
136 166 200 |
19.5 17 14 |
81 | 1450 | 45 |
300-300 | 540 720 900 |
150 200 250 |
32 28 23 |
82 | 1480 | 75 |
300-300A | 450 600 720 |
125 166 200 |
27.5 24 20 |
80 | 1480 | 75 |
300-300B | 420 540 650 |
116.7 150 181 |
24 21 17 |
78 | 1480 | 55 |
300-315 | 540 720 900 |
150 200 250 |
35 32 26 |
84 | 1480 | 90 |
300-315A | 460 650 800 |
127.8 180 222 |
31.5 28 23.5 |
80 | 1480 | 75 |
300-315B | 420 580 700 |
116.7 161 194 |
27 24 20.0 |
78 | 1480 | 55 |
300-380 | 480 720 900 |
133.3 200 250 |
48 44 34 |
84 | 970 | 132 |
300-380A | 444 666 833 |
123.3 185 231.4 |
41.4 38 30 |
80 | 970 | 110 |
300-380B | 400 614 764 |
113.6 170.6 213.1 |
35 32 25 |
78 | 970 | 90 |
300-390 | 540 720 900 |
150 200 250 |
20.5 18 15.5 |
78 81 76 |
980 | 55 |
300-390A | 450 600 720 |
126 167 200 |
17.2 15 12.8 |
77 79 75 |
980 | 45 |
300-390B | 400 540 650 |
111 150 180 |
14 12.5 11.5 |
74 77 76 |
980 | 37 |
300-400 | 450 600 720 |
125 166 200 |
55 50 42.5 |
78 | 1480 | 110 |
300-480 | 540 720 900 |
150 200 250 |
31 28 24 |
79 81 80 |
980 | 75 |
300-480A | 450 600 720 |
126 166 200 |
27.4 24 20.0 |
78 80 79 |
980 | 75 |
300--480B | 400 540 650 |
111 150 180 |
24 21 17 |
79 | 980 | 55 |
300-315(1) | 650 950 1200 |
180.6 263.9 333.3 |
36 32 28 |
82 |
1450 | 132 |
300-315(1)A | 600 900 1150 |
166.7 250 320 |
32 28 24 |
80 |
1450 | 110 |
350-235 | 600 800 960 |
167 222 267 |
14 12.5 10.5 |
80 83 82 |
980 | 37 |
350-235(1) | 800 1080 1350 |
222.2 300 375 |
20 16 12 |
80 83 82 |
980 | 75 |
350-300 | 600 800 960 |
167 222 267 |
22.5 20 17.5 |
79 82 71 |
980 | 75 |
350-315 | 600 800 960 |
167 222 267 |
35.5 32 28.5 |
84 |
980 | 90 |
350-400 | 600 800 960 |
167 222 267 |
55 50 45.5 |
83 | 980 | 160 |
400-300 | 920 1180 1300 |
255 328 361 |
23 19 16 |
78 | 980 | 90 |
400-315 | 950 1250 1500 |
264 347 416 |
32 28 24 |
76 | 980 | 132 |
500-235 | 1500 1800 2000 |
416 500 556 |
16 14 12 |
75 | 980 | 110 |
500-300 | 1400 1700 1900 |
388 472 528 |
22 20 18 |
80 | 980 | 132 |
500-315 | 1200 1550 1800 |
333 416 500 |
32 28 24 |
78 | 980 | 160 |
上一篇: D型臥式多級離心泵
下一篇: ISWB型臥式單級防爆管道離心泵
